HELICOIL® manual installation tool

for HELICOIL® Classic and HELICOIL® Plus
Thread type: UNF | Product group: Tools | Product type: H-PSG
HELICOIL® manual installation tool
Diameter (d)
UNF 1/2"-20
UNF 1/4"-28
UNF 3/8"-24
UNF 4-48
UNF 5/16"-24
UNF 6-40
UNF 7/16"-20
UNF 8-36
UNF 10-32
Pitch (P)
0,53
0,63
0,71
0,79
0,91
1,05
1,27
Packaging unit (pcs.)
1
Please select a version to see prices and availability.

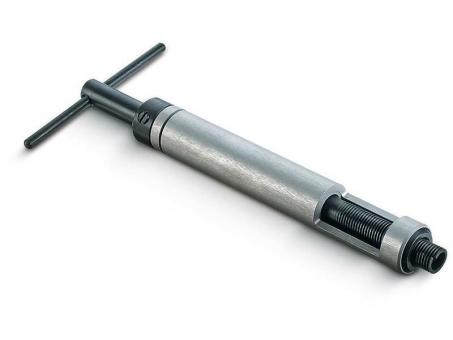

The H-PSG manual installation tool allows an easy installation of HELICOIL® Classic and HELICOIL® Plus thread inserts without loss of performance. The manual installation tool features a leader cartridge, a pitch-controlled threaded mandrel and a depth stop and fits UNF threads.

Note:
Only required for HELICOIL® Plus for fine screw threads and special applications. As an alternative, a HELICOIL® Plus installation mandrel can be used.

Properties:
• Pitch-controlled
• With depth stop
• With leader cartridge
• For HELICOIL® Classic, HELICOIL® Plus Free Running and HELICOIL® Plus Screwlock
Thread type:
UNF
Product type:
Hand-operated installation tool
Product group:
Tools
Product type:
H-PSG

Data sheet: Technical information and dimensions of the product
PDF
ENG
02/2024
